Price range: $64.86 through $147.40
Brand Name: HQZB
Certification: CE
High-concerned chemical: None
Model Number: HP-A105/HP-A110/HP-A151/HP-A155/HP-A215/HP-A220/HP-A320
Origin: Mainland China
Power Supply: AC220V±10%50HZ
Power(W): 180/350/500/700/900W
Product name: Heating Plate
Temperature control range: 0-400℃
Working Size (mm): 100*50/100*100/150*100/150*150/200*150/200*200/300*200/mm
is_customized: Yes
weight: 0.63/0.89/1.2/1.5/1.9/2.4/3.3kgs

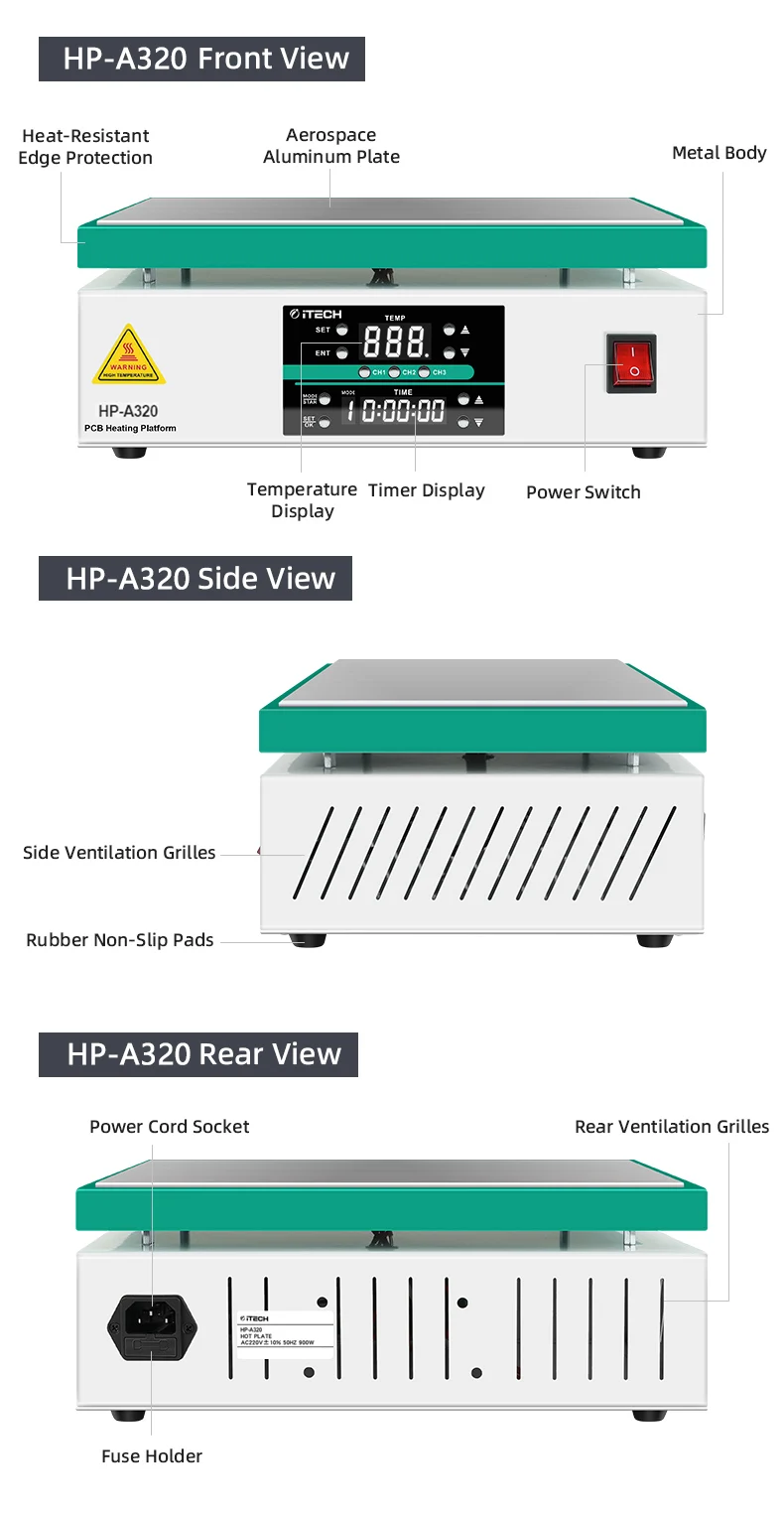

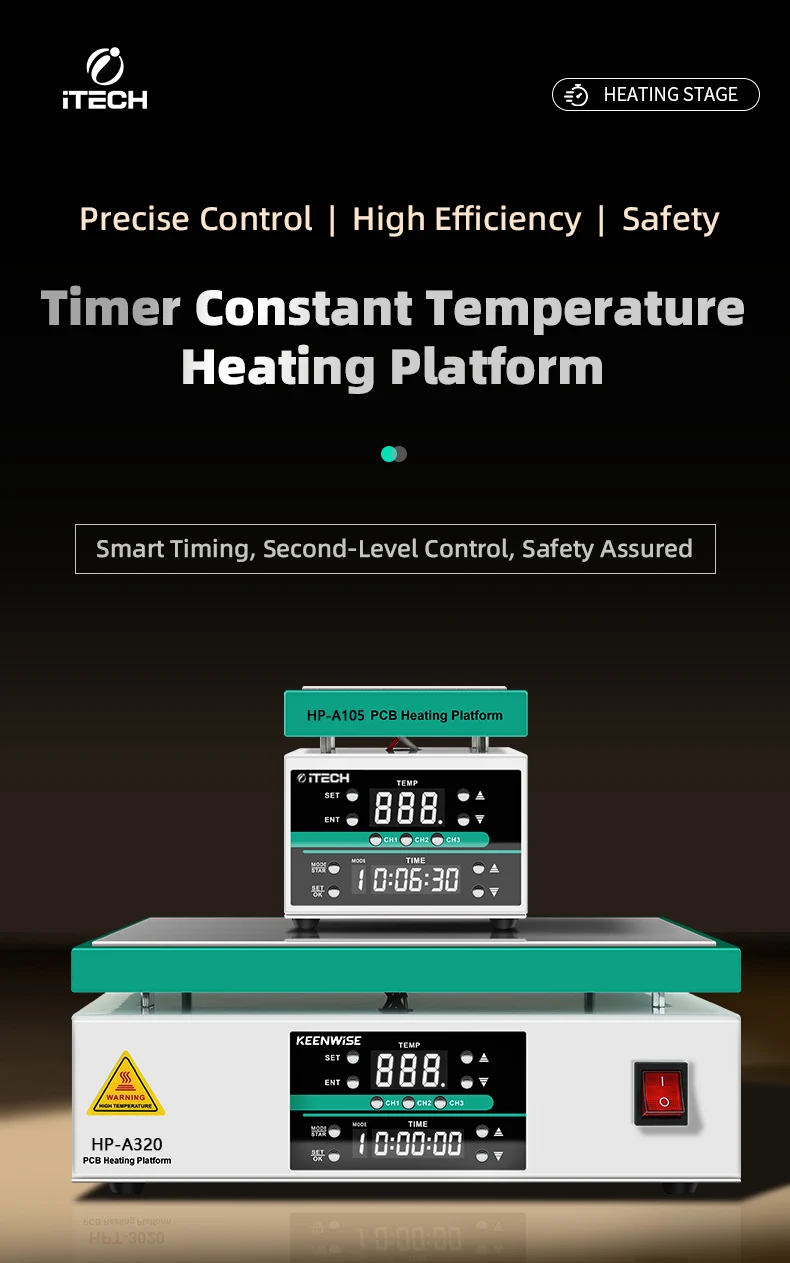

ITECH Heating Platform 0~450'C High Temperature Preheating Table 300x200mm Multi Purpose Electric Heating Plate For Pcb Heat
—PID Intelligent Temperature Control for stable and accurate heating

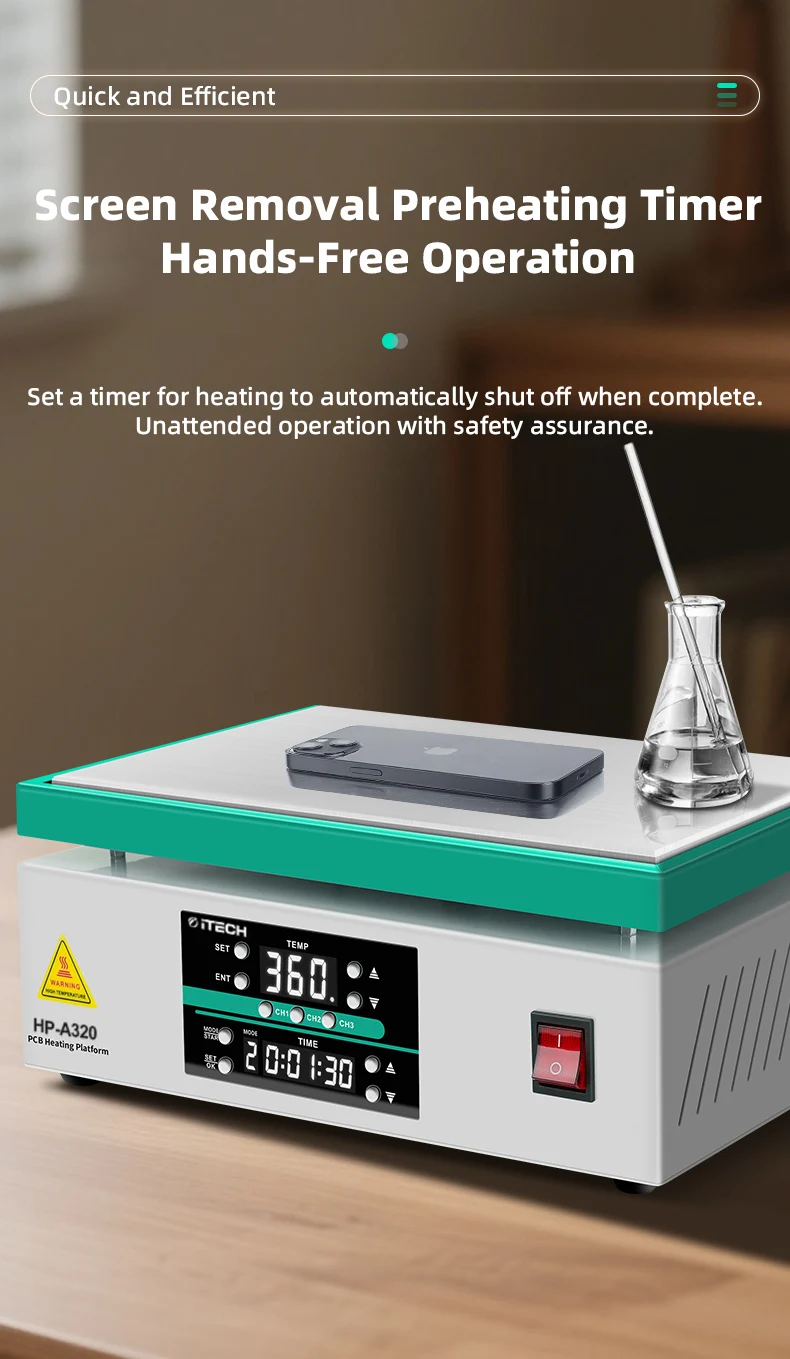

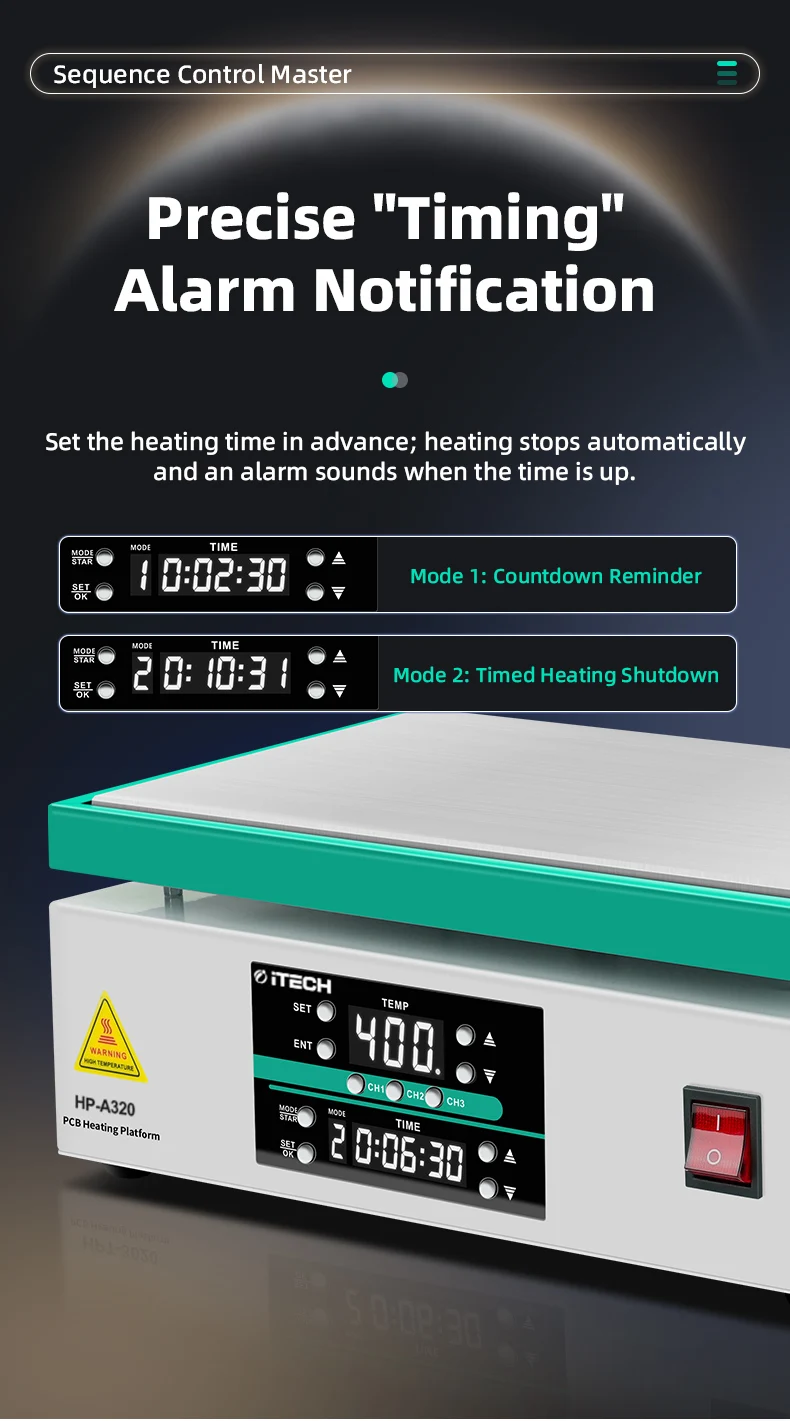

—Adjustable Timer with automatic stop and alarm reminder

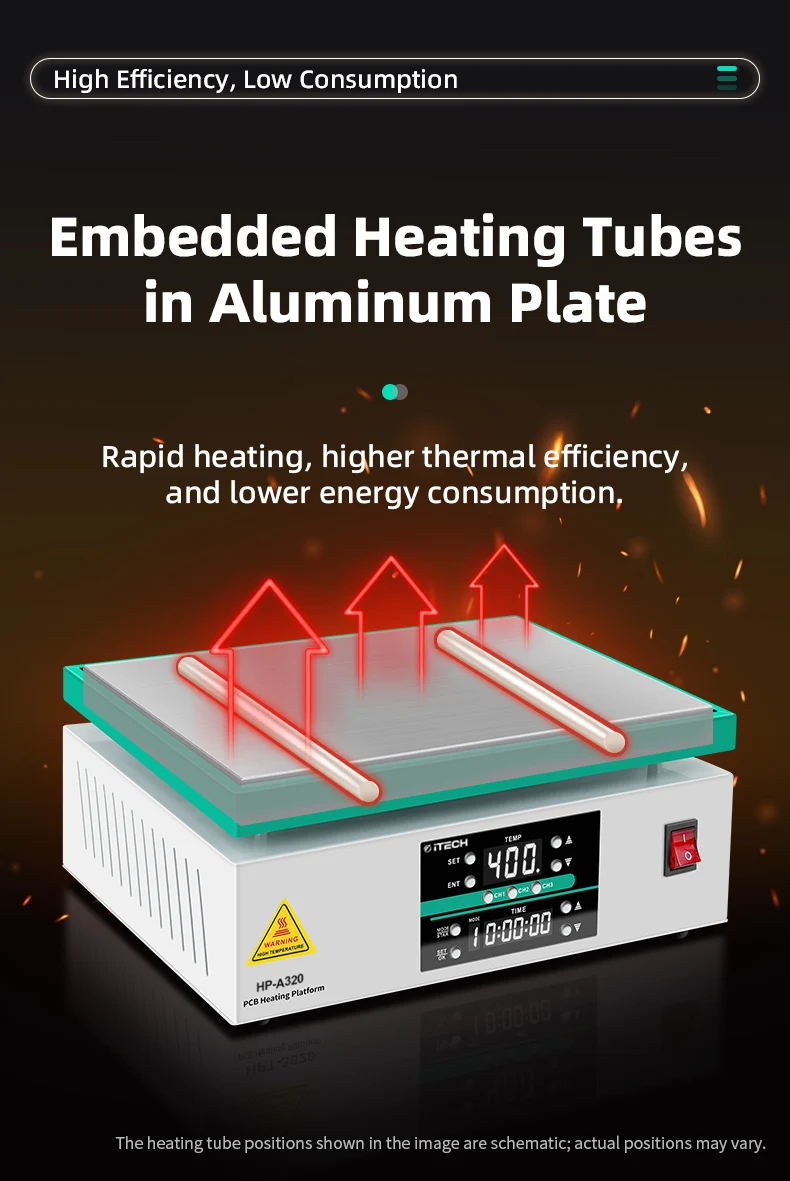

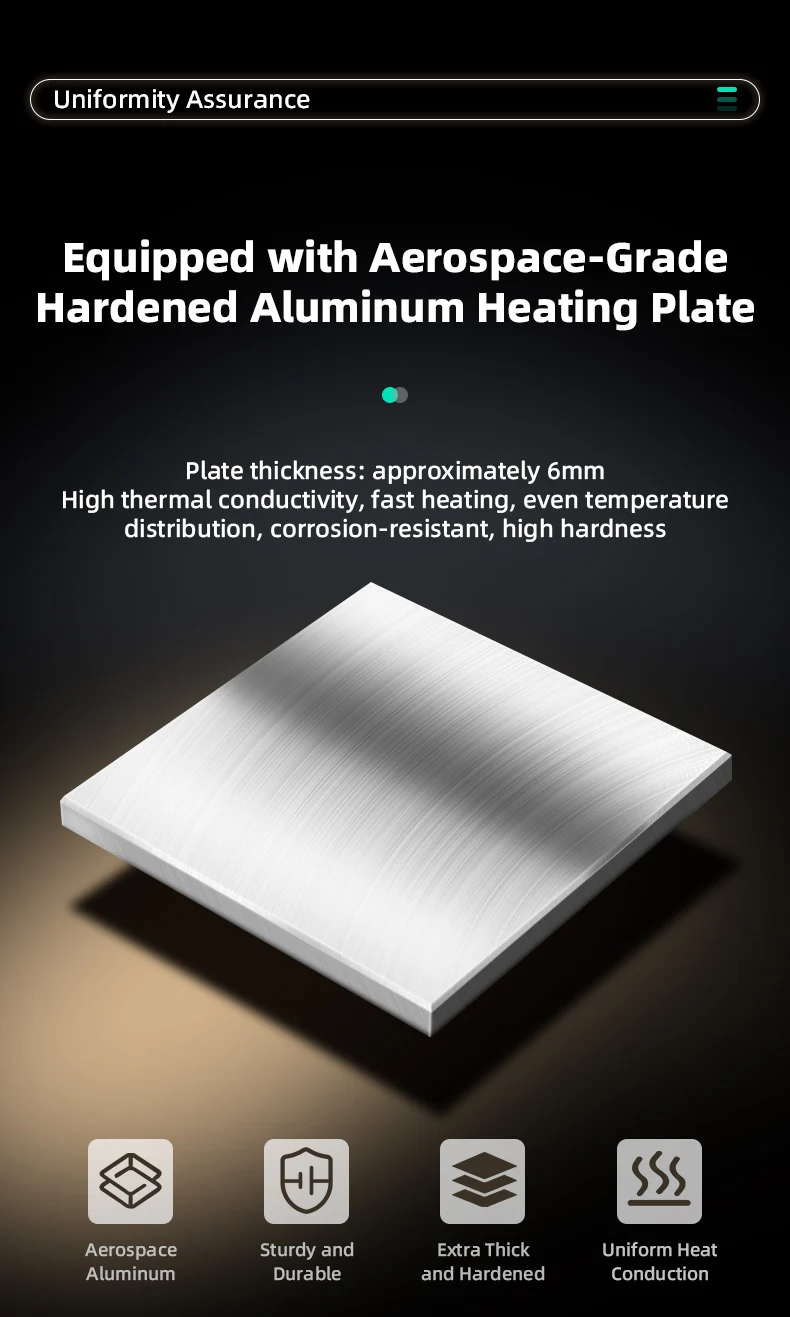

—Aerospace-Grade Aluminum Heating Plate for uniform heat distribution

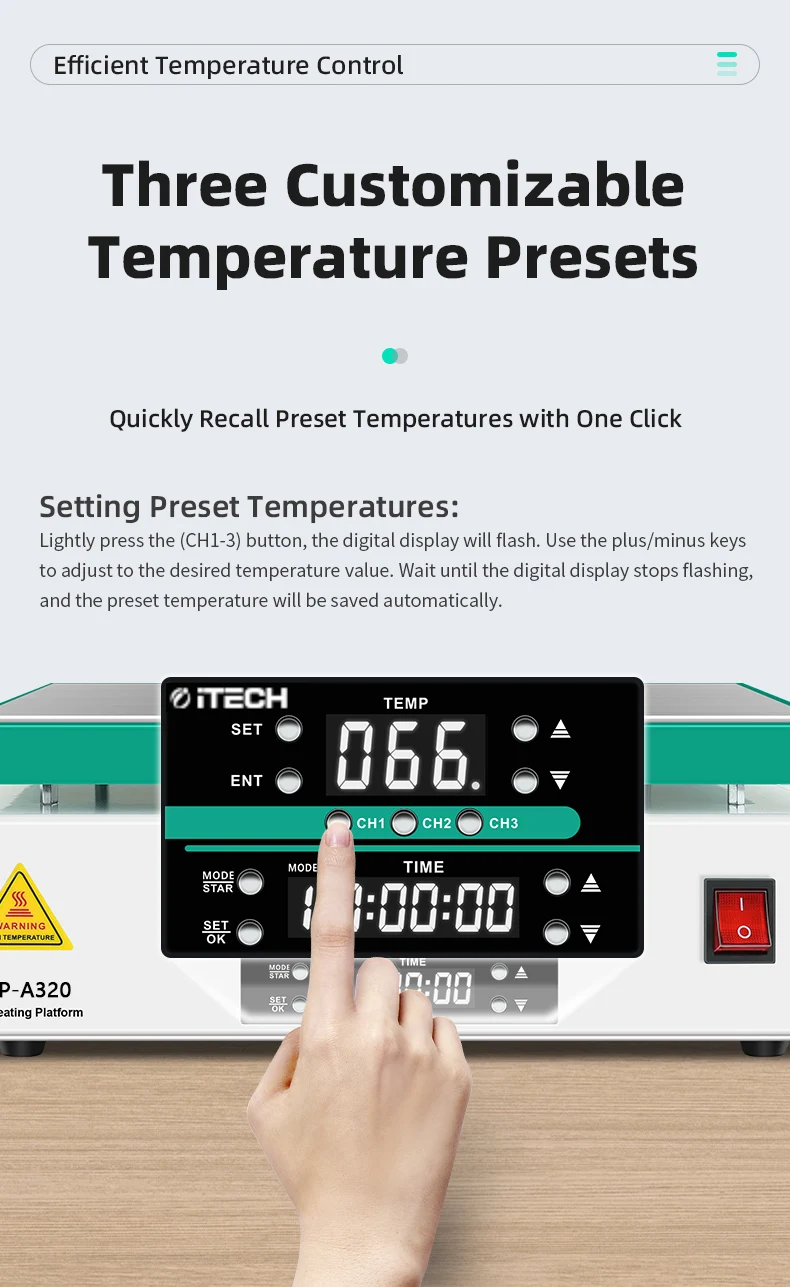

—Three Preset Temperature Memories for quick operation

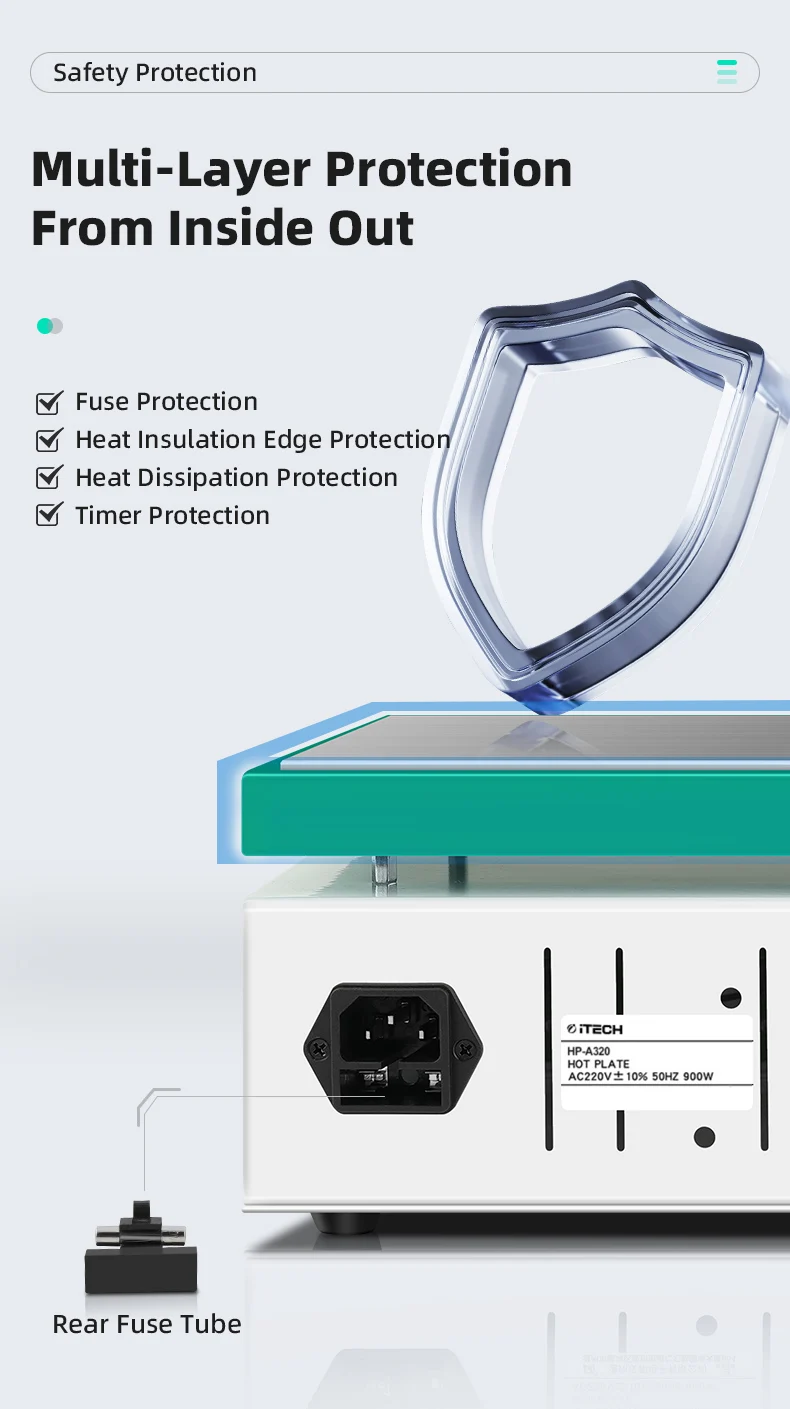

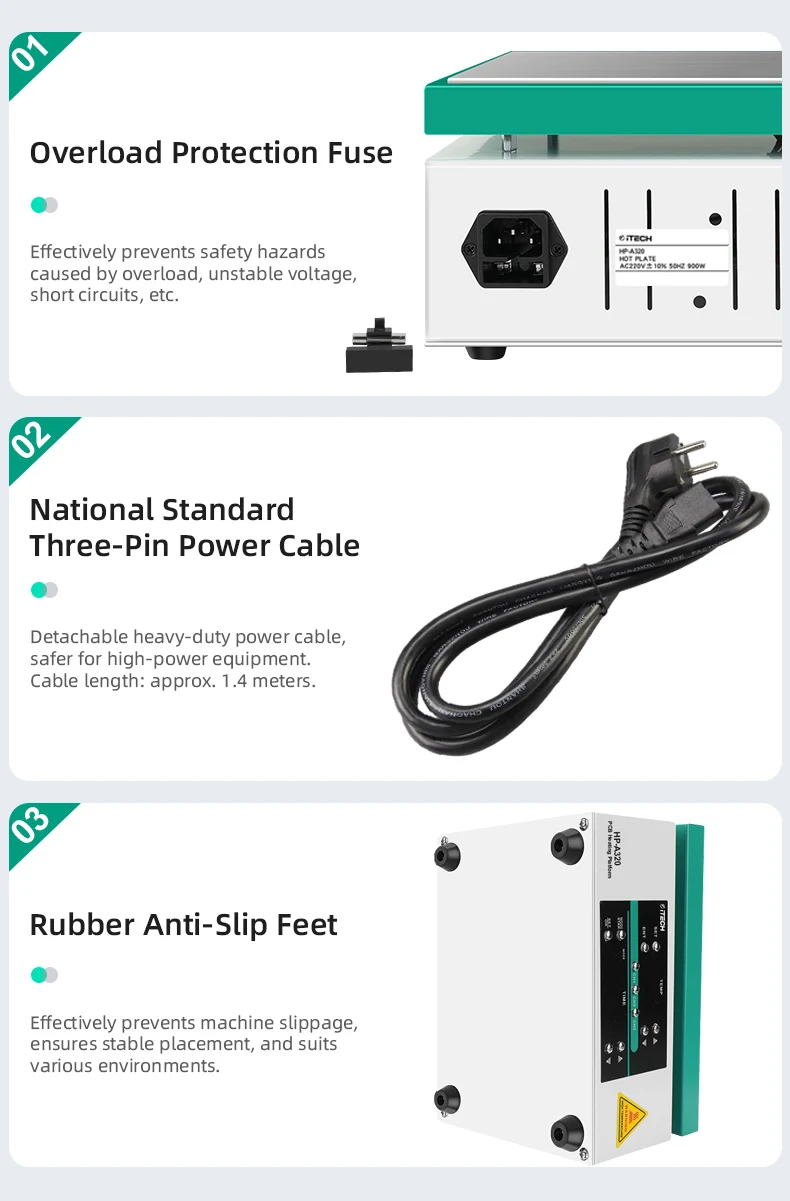

—Built-in Safety Protection including fuse and overheat protection

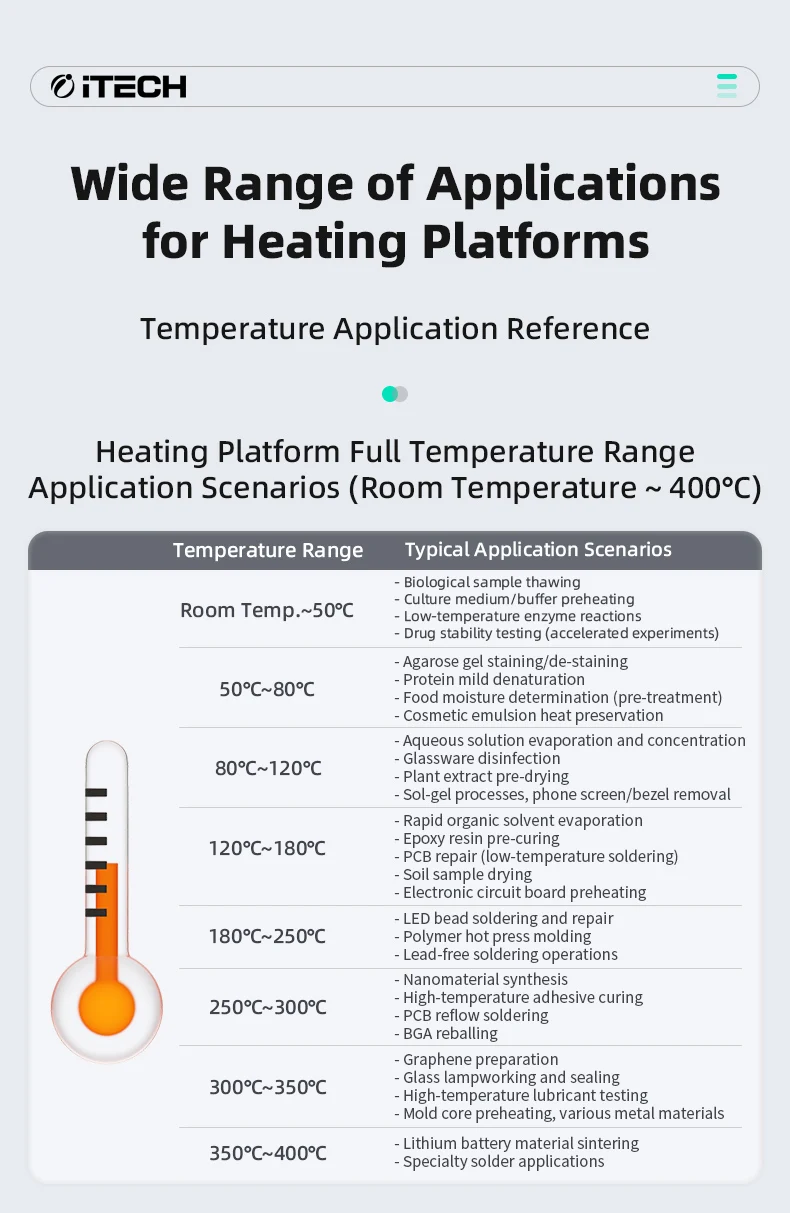

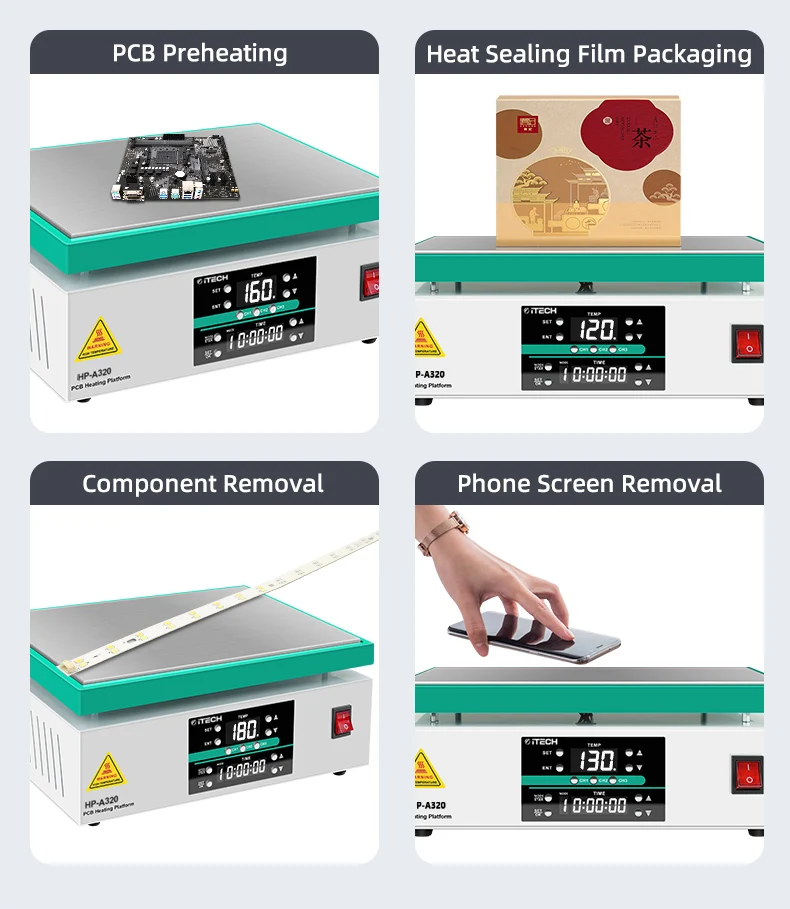

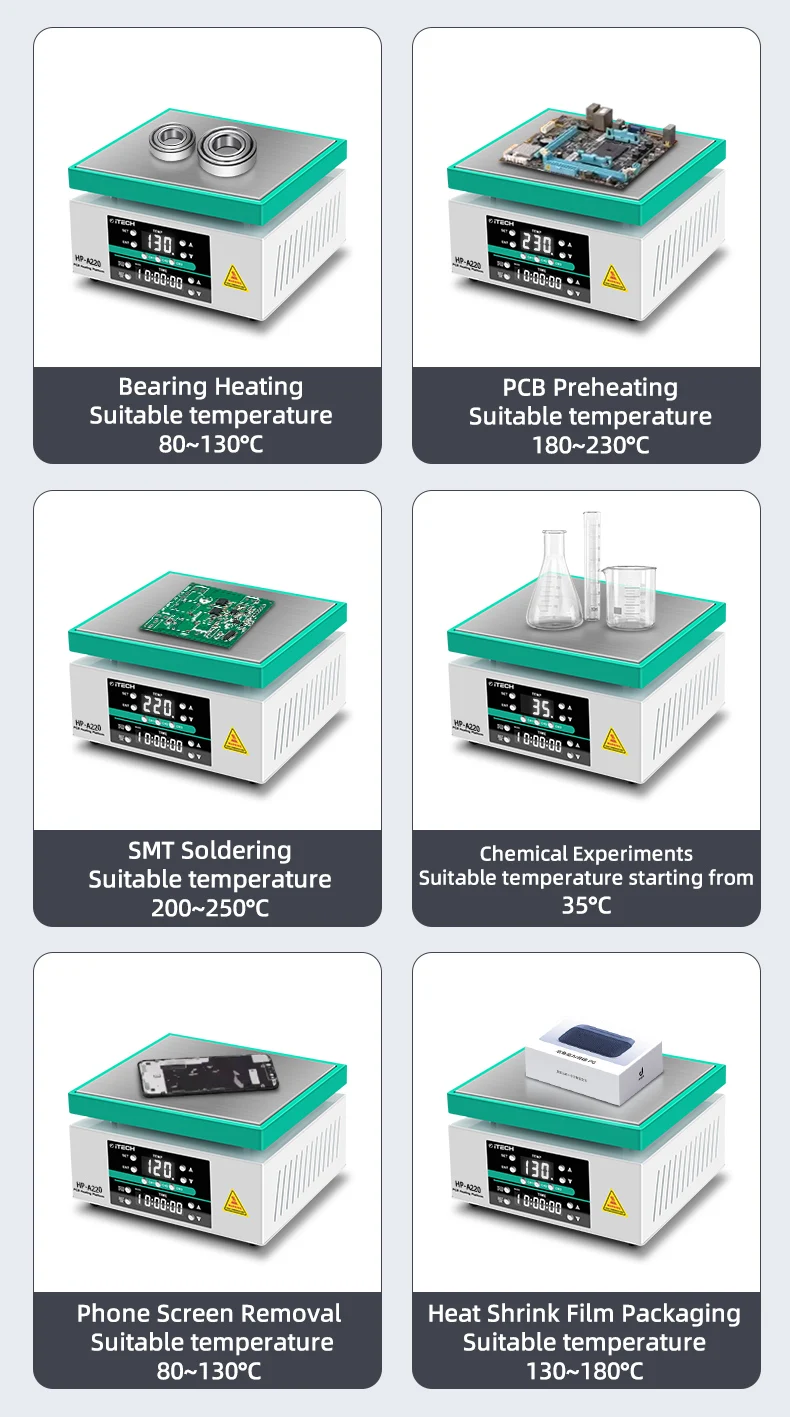

—Suitable for PCB Preheating, BGA Rework, SMT Soldering and Phone Screen Removal
|

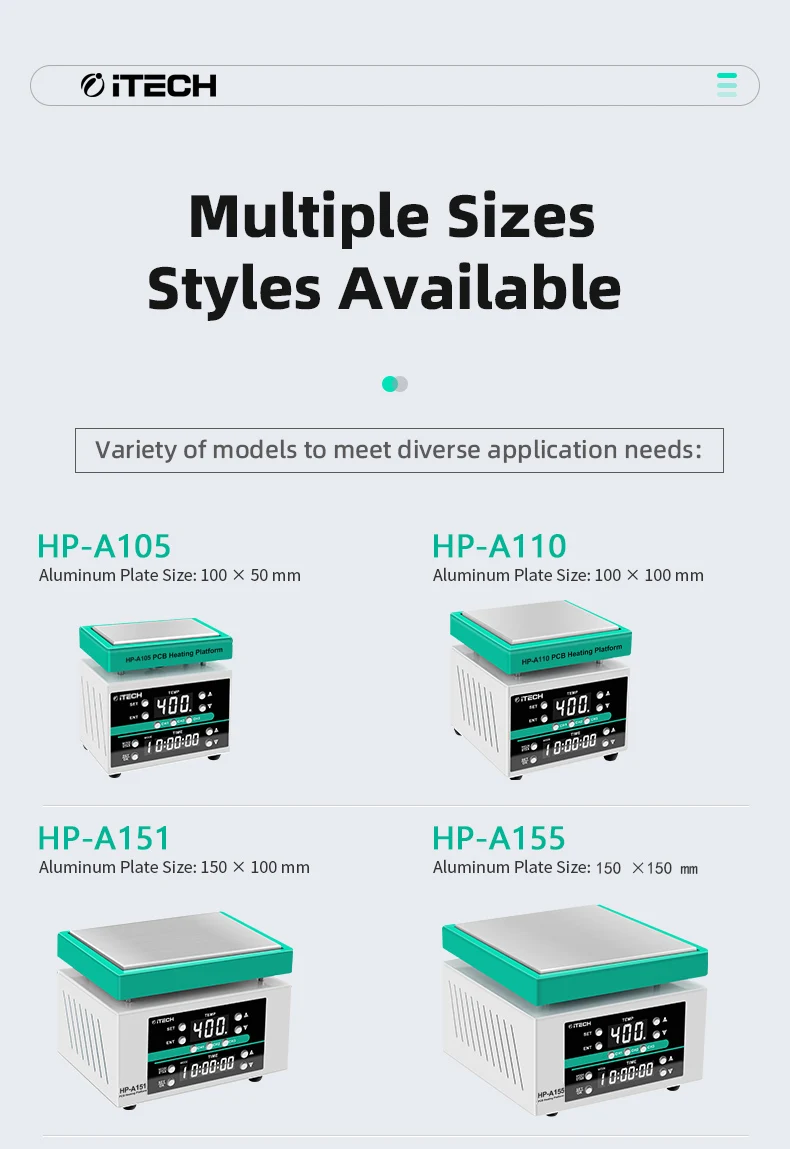

Model |
Temperature |
Power (W) |
Plate Size (mm) |
Overall Dimensions (mm) |
Net Weight (kg) |
|
HP-A105 |
Room Temp.~400℃ |
180 |
100×50 |
118×68×118 |
Approx.0.63 |
|
HP-A110 |
Room Temp.~400℃ |
350 |
100×100 |
118×118×118 |
Approx.0.89 |
|
HP-A151 |
Room Temp.~400℃ |
500 |
150×100 |
168×118×125 |
Approx.1.2 |
|
HP-A155 |
Room Temp.~400℃ |
500 |
150×150 |
168×168×125 |
Approx.1.5 |
|

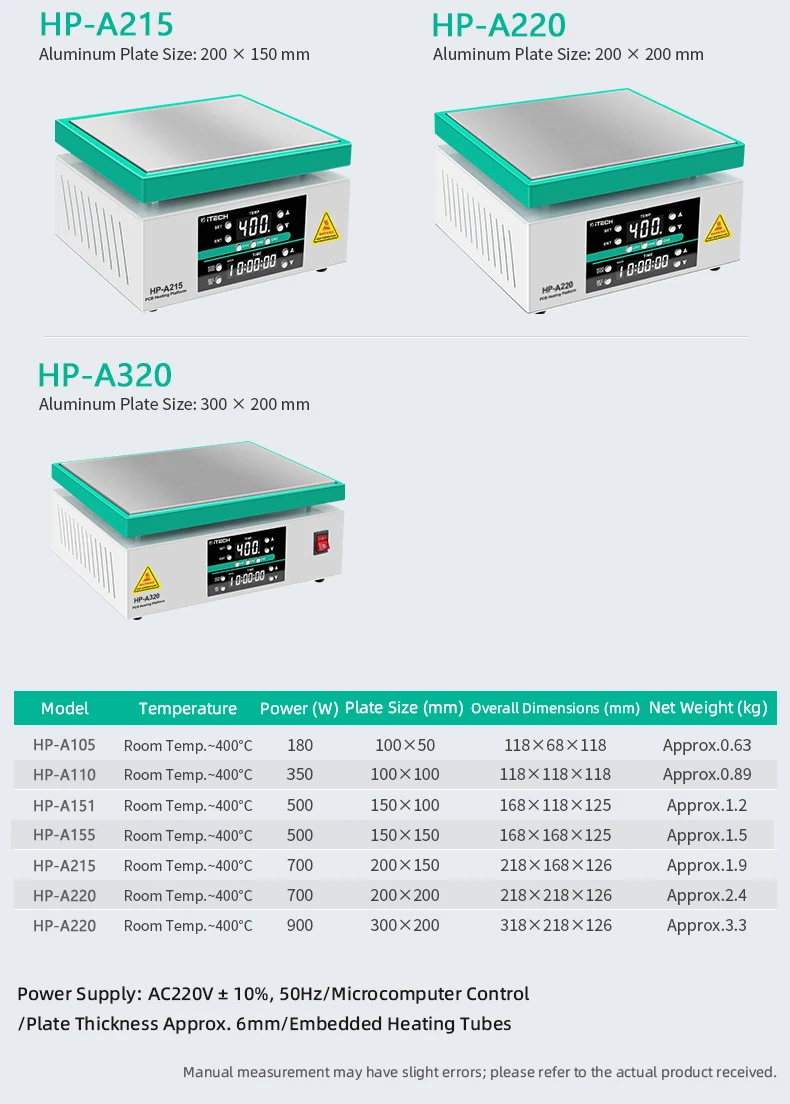

HP-A215 |
Room Temp.~400℃ |
700 |
200×150 |
218×168×126 |
Approx.1.9 |
|
HP-A220 |
Room Temp.~400℃ |
700 |
200×200 |
218×218×126 |
Approx.2.4 |
|
HP-A320 |
Room Temp.~400℃ |
900 |
300×200 |
318×218×126 |
Approx.3.3 |
| Color | HP-A105, HP-A110, HP-A151, HP-A155, HP-A215, HP-A220, HP-A320 |
|---|---|
| Voltage | EU 220V |
| Ships From | China Mainland |
